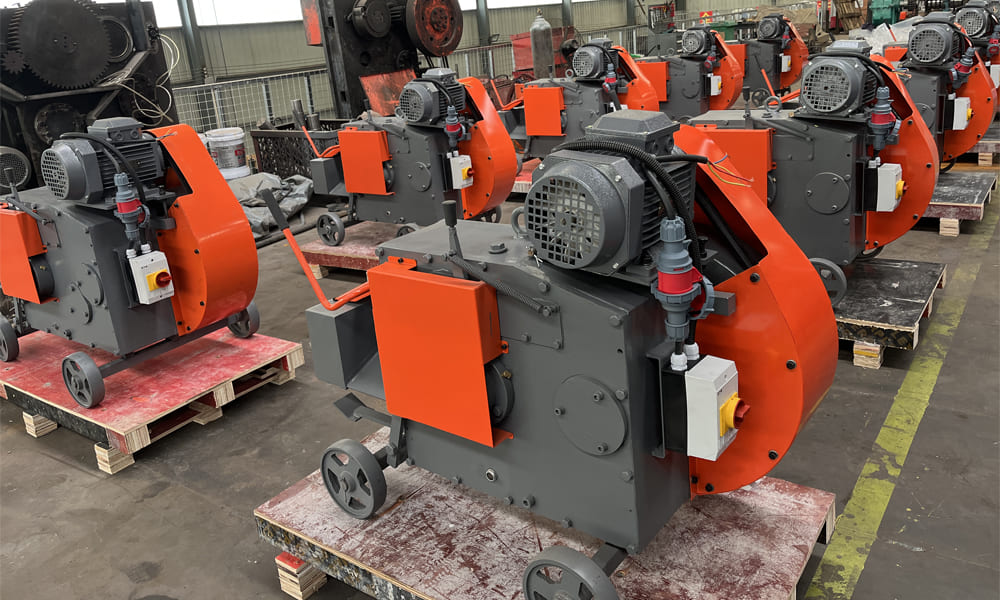

C52 Steel Bar Cutting Machine: Power Transmission & Operational Mechanics
Technical Overview
C52 Steel Bar Cutting Machine operates through an integrated mechanical system that efficiently converts electrical energy into precise cutting action. This sequential power transmission mechanism ensures reliable performance while maintaining structural integrity during high-demand cutting operations.
Power Transmission Pathway
1. Primary Drive System
-
Electric Motor: Serves as the initial power source, generating rotational force through electromagnetic induction
-
Pulley Assembly: Transfers motor rotation to the gear reduction unit using V-belt technology, providing initial speed adjustment and shock absorption
-
V-Belt Drive: Acts as a flexible coupling that dampens vibration and prevents motor overload
2. Motion Transformation Mechanism
-
Gear Reduction Unit: Features precisely machined helical gears that provide two-stage speed reduction while correspondingly increasing output torque
-
Eccentric Drive Shaft: Converts rotational input into controlled linear oscillation through its offset journal design
-
Connecting Linkage: Transfers the eccentric shaft’s oscillating motion to the blade carriage assembly while maintaining precise alignment
3. Cutting Implementation Assembly
-
Blade Carriage: Reciprocating component that guides the moving blade through its cutting arc
-
Active Cutting Blade: Heat-treated steel blade mounted to the moving carriage that performs the shearing action
-
Stationary Blade: Fixed cutting edge rigidly mounted to the machine frame that provides the counter-force for clean material separation
4. Structural Framework
-
Main Machine Housing: Precision-machined casting that maintains component alignment under operational loads
-
Support Base: Heavy-duty frame that provides operational stability and vibration dampening
-
Protective Guards: Safety enclosures that prevent access to moving components during operation
C52 Kinematic Sequence
Power flow follows this mechanical path:
Electric Motor → Pulley System → Reduction Gears → Eccentric Shaft → Connecting Rod → Blade Carriage → Moving Blade → Material Shear
Component Classification
-
Rotational Elements: Motor rotor, pulley shafts, gear train, eccentric shaft
-
Oscillating Components: Connecting rod, blade carriage, moving blade
-
Static Members: Machine frame, stationary blade, base structure, protective covers
C52 Steel Bar Cutting Machine,This engineered system demonstrates how coordinated mechanical elements transform electrical input into controlled cutting force, ensuring consistent performance while maximizing component longevity through optimized load distribution.
