Steel Bar Spiral Bending Machine
Bend Bar Capacity: 14 – 36 mm
Mini Circle Diameter: 400mm
Maxi Circle Diameter: No limit
Motor Power: 4 kW
Dimensions: 1100 x 800 x 850 mm
Machine Weight: 400 kg

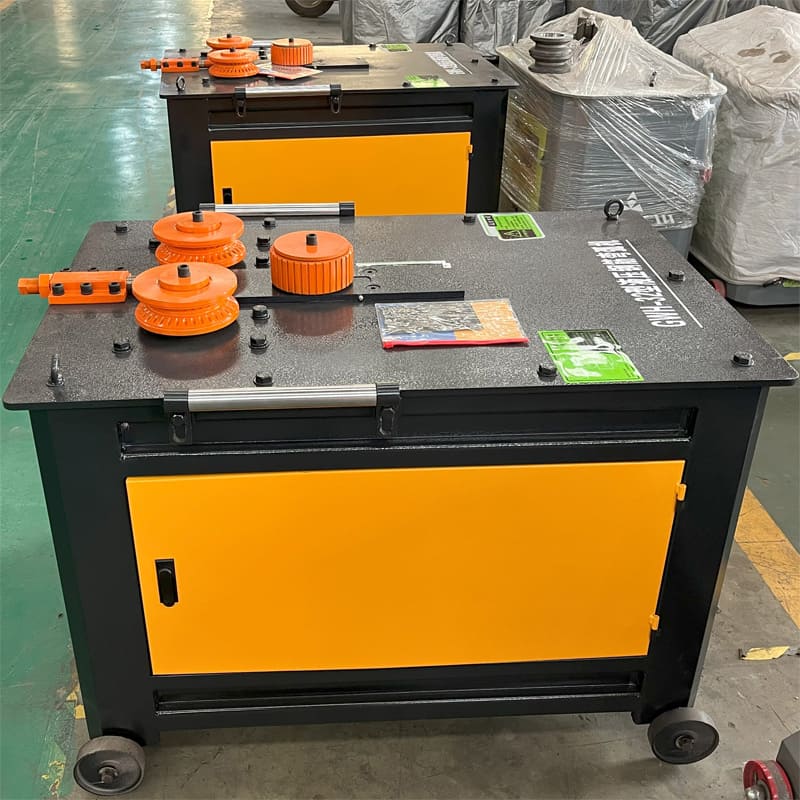

Steel Bar Spiral Bending Machine
Steel Bar Spiral Bending Machine is a robust mechanical device designed to bend steel bars into circular or spiral shapes, making it ideal for large-scale construction projects. Using a hydraulic system controlled by advanced electronic technology, this machine offers automated, precise production with minimal manpower. It enhances productivity, reduces labor costs, and guarantees high-quality bends for steel bars of various sizes.
Technical Specifications
| Steel Bar Spiral Bending Machine | |
|---|---|
| Material Capacity | |
| Round Plain Bar Capacity | 14-36 mm (0.55-1.42 in) |
| Deformed Bar Capacity | 14-32 mm (0.55-1.26 in) |
| Power System | |
| Motor Power | 4 kW (5.4 HP) |
| Motor Speed | 1440 r/min |
| Rated Voltage | 380 V (3 Phase) |
| Performance | |
| Spiral Bending Speed | 28 r/min |
| Vernier Scale Ratio | 1 cm = 1.5 m (0.39 in = 4.92 ft) |
| Construction | |
| Panel Thickness | 12 mm (0.47 in) |
| Physical Specifications | |
| Dimensions (L×W×H) | 1100 × 800 × 850 mm (43.3 × 31.5 × 33.5 in) |
| Machine Weight | 400 kg (882 lbs) |
Spiral Bending Diameter Range
- Ø16: Minimum: 0.3 m, Maximum: Unlimited
- Ø18: Minimum: 0.4 m, Maximum: Unlimited
- Ø20: Minimum: 0.4 m, Maximum: Unlimited
- Ø22: Minimum: 0.4 m, Maximum: Unlimited
- Ø25: Minimum: 0.4 m, Maximum: Unlimited
- Ø28: Minimum: 0.5 m, Maximum: Unlimited
- Ø32: Minimum: 0.6 m, Maximum: Unlimited
Working Principle
Hydraulic Rebar Spiral Bender uses a sophisticated mechanical and control system to automate bending processes, allowing precise pre-setting of bending angles and arcs. Key components include:
-
Driving and Passive Wheels: Steel bars are fed into the machine through the feed port. The distance between wheels is adjustable according to bar size. The active (driving) wheel feeds the steel bar smoothly, enabling fast and accurate bending.
-
Multiple Bending Molds: Interchangeable bending molds accommodate a wide range of steel bar diameters and spiral shapes, meeting diverse project requirements.
-
Control System: Advanced control ensures precise management of bending angles and speeds for consistent, high-quality results.
Applications
Hydraulic Rebar Spiral Bender is essential equipment in various industries, including:
-
Infrastructure Construction: Produces specific circular and spiral shapes of steel bars required for buildings, bridges, tunnels, and more.
-
Bridge Construction: Bends steel bars into complex shapes tailored for bridge frameworks, ensuring structural integrity and design compliance.
-
General Construction: Widely used for fabricating rebars that conform to demanding architectural and engineering standards.
Operation and Maintenance Guide
Mechanical Checks:
Before operation, inspect all mechanical components for wear or damage. Ensure the workbench and machine are level to guarantee accuracy.
Mold Installation:
Select and install the appropriate mandrel, forming shaft, or variable stop frame based on the steel bar diameter. Optimal mandrel diameter is typically 2.5 times the bar diameter for smooth bending.
Safety Inspection:
Examine the mandrel, stopper, and turntable for cracks or damage. Confirm all protective covers are firmly secured to prevent accidents.
Operation Specifications:
-
Insert the steel bar into the turntable gap, securing one end against the machine frame.
-
Do not adjust the mandrel diameter or speed settings during bending to maintain consistent results.
Run Empty First:
Test run the machine without material to verify normal operation before starting production.
